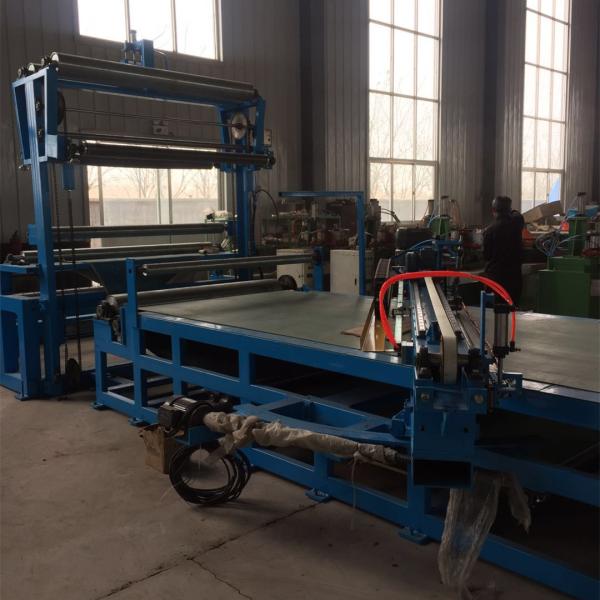

Horizontal Bias Cutter/Horizontal Bias Cutting Machine/Bias Cutter
Rubber Cutter Machine/Fabric Cord Cutting Machine
Applicant
Cut the rubber coated cord, canvas, cloth, fine cloth after friction into specific width and angle. After cut, the canvas(curtain) fabric is turn up after connection by hand, for later forming use.
Structure features
The cutting machine mainly consists of let-off device, feed devices and fixed-length cutting device. With adjustment by the encoder, it can set the angle of cut cloth, with adjustment of servo motor, it can set the width of cut cloth. Cutting times adjustment range is wide, cutting stroke is adaptable to(curtain) fabric.
Main parameter
| Cutting times per minute | 10-20 |
| Applicable cord width | 1500mm |
| Diameter of fabric cord roll | 950mm |
| Cloth cutting width(mm) | 100-1000mm |
| Cloth cutting angle | 0-50° |
| Stroke of cutter | 2800mm |
| Length fixing type | Manual or automatic |
| Revolving speed of cutter | 2700r/min |
| Pressure of compressed air | 0.6-0.8Mpa |
| Total capacity | 10kw/h |
| Overall size | 10500x4300x2100mm |
| Weight | 4500kg |
Machine detail
